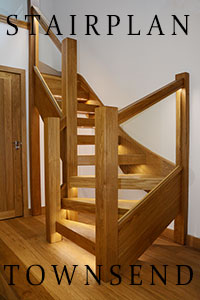

Oak Townsend Staircase

On this page you can see some images of the original Townsend staircase we produced, the Townsend is a higher specification than a typical/normal openplan staircase in Oak, To appreciate the difference I would advise seeing these in the flesh in our Staircase Showroom.

These are a number of features that have been enhanced on this staircase. New Townsend Staircase
See the Very Latest Townsend Staircase Launched at Grand Designs Live now in the Showroom.

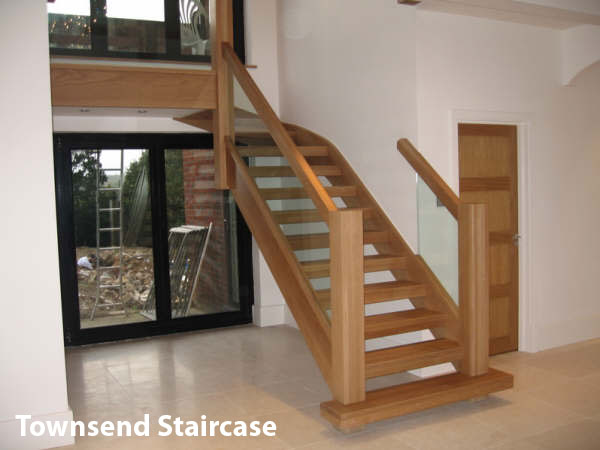

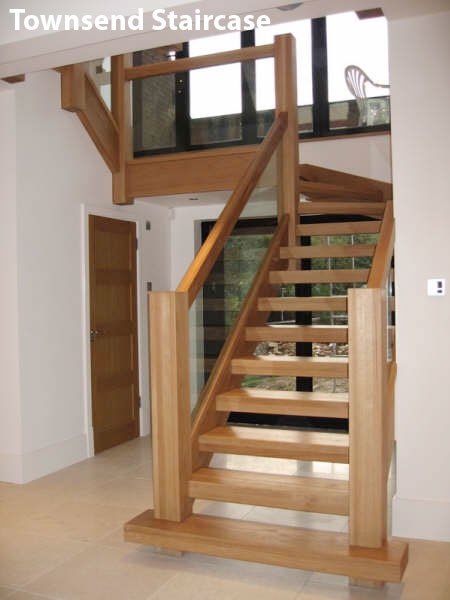

oak townsend Staircase Openplan with Glass


Timber - American White Oak

Strings - 40mm
Treads - 40mm
Riser downstands - 40mm
Handrail - 63 x 100mm
Newel Posts - 150 x 150mm
Toughened Glass Balustrade Panels

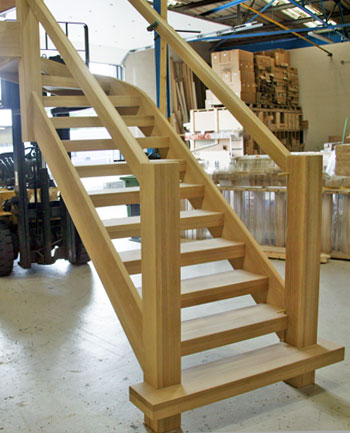

Oak towsend staircase in the workshop

Townsend Staircase in the workshop -
On this staircase the riser downstands have been set flush to the front edge of the treads to give the treads the appearance of being around 90mm thick (This vairies depending on the rise of the staircase). Also all the edge radiuses used are far smaller than those used on our standard Openplan staircases this helps with keeping the contemporary feel the staircase is designed to achive. More on the Townsend

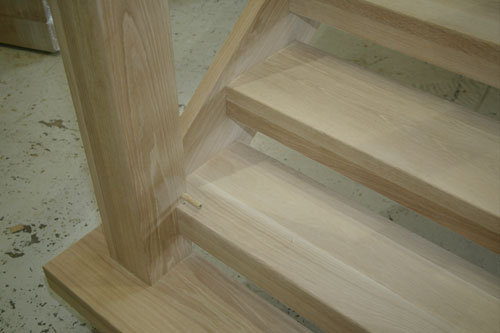

The bottom step is a Square off Double sided curtail step.

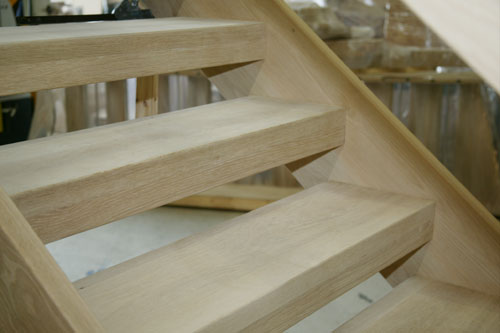

townsend Tread Detail

Original Townsend Tread detail

townsend Tread from below the underside

The Tread was 40mm thick with a flush downstand at the front of the tread - this gave the effect of a thick stair tread from the front of the staircase. The Townsend Staircase has now evolved....

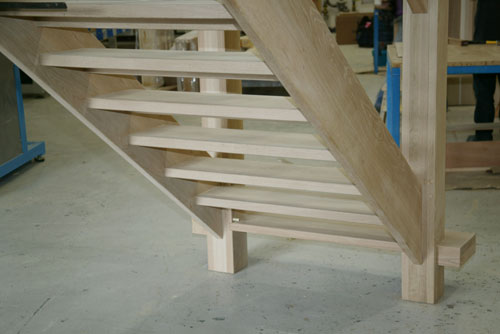

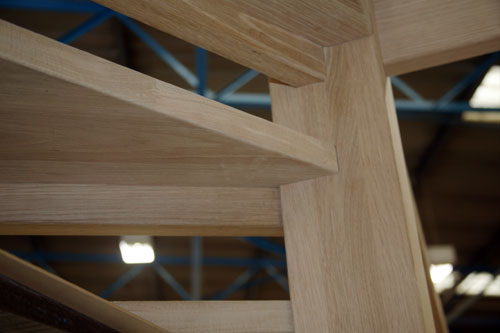

Under side of the Winder Tread

This picture shows you under the winder section of the staircase.

We assemble all our staircases in the workshop to ensure the quality of our staircases and this saves time for the fitters on site.

Oak townsend staircase

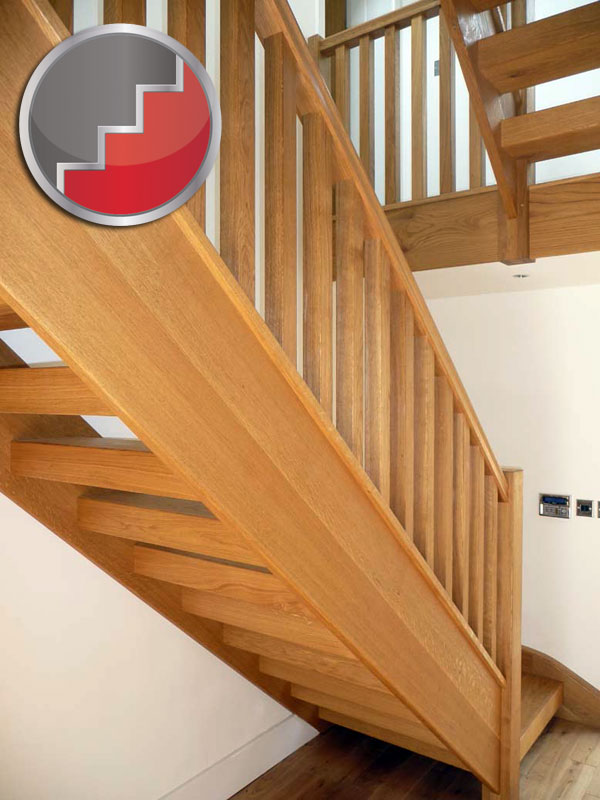

from under the staircase

Oak townsend staircase with Glass Balustrade

Above - Our original design detail on the Townsend Stair Treads
Below - The Tread detail on the current generation of Townsend Staircases produced by Stairplan in the UK

Townsend staircase tread detail

See more on the New Generation of Townsend staircases

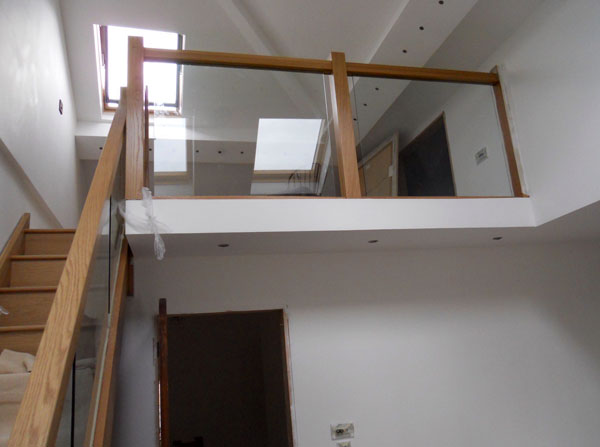

On the staircase above you can see the option of hving the apron stairwell lining supplied in oak with your landing balustrade components. Oak Apron Stair well linings

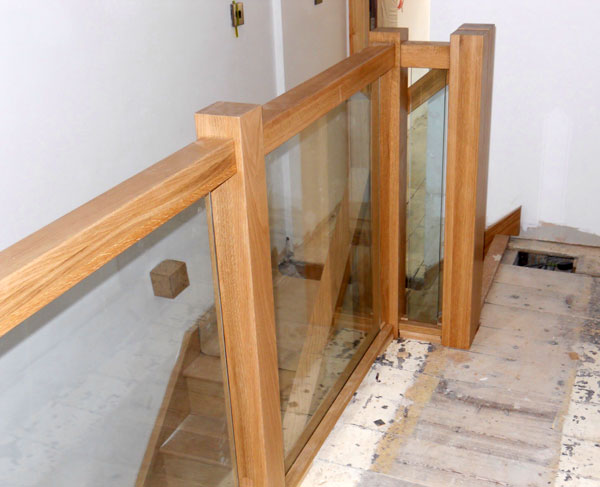

Tihs photo shows you the stair with the toughened glass balustrade panels.

Oak townsend staircase

Look in our online E-Brochure

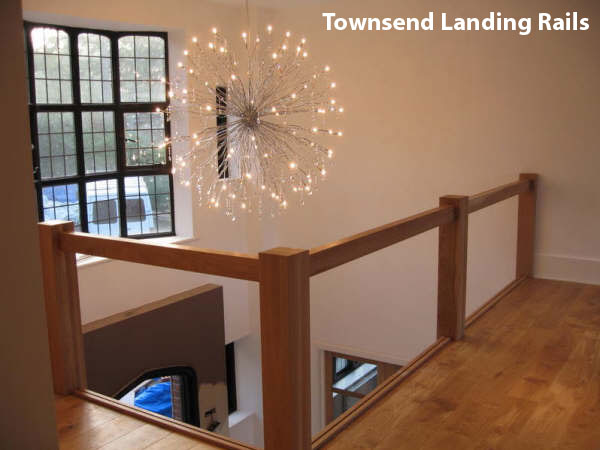

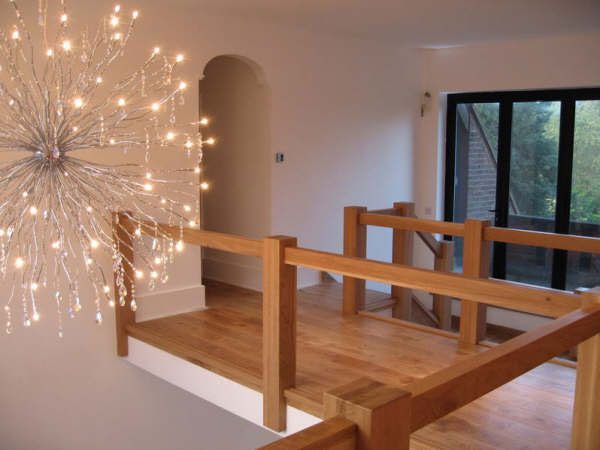

townsend landing balustrading

The 150mm Newel posts are one of the details that set this staircase apart from a typical specification oak staircase, the 150mm posts do count for a large part of the increased cost of this staircase over the standard oak openplan staircases.

Townsend landing handrail

Interesting alternative - Vision Glass balustrade | S-Vision glass Balustrade | Stainless Steel and Glass

More on the Oak Townsend Staircases | Townsend Winder Staircase | Chunky Townsend Stair.

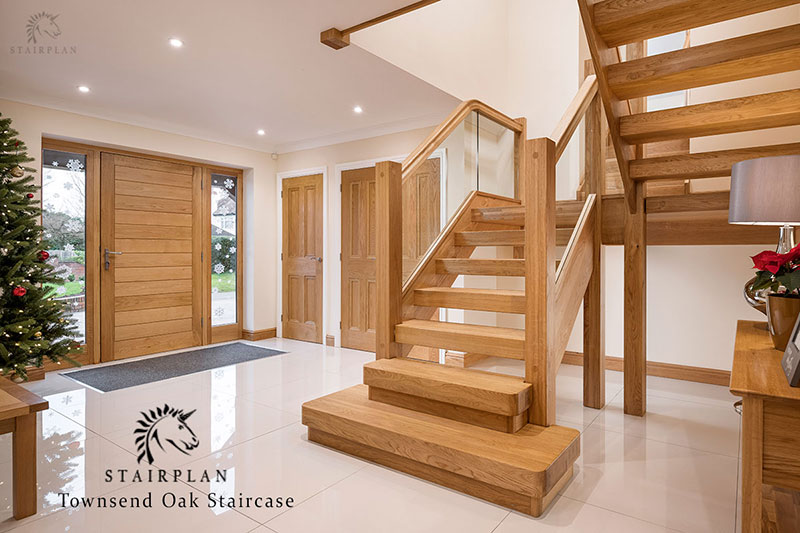

New Oak Townsend with Embedded Glass balustrade panels

New Townsend Oak Staircase with Embedded glass balustrade panels

See more on this Oak Townsend staircase

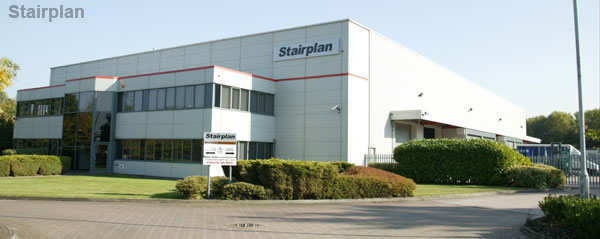

Stairplan - Visit us | Contact Details | Staircase Joinery Workshop

Stairplan Staircase Production

Vision Glass Balustrade - No Brackets

Oak Staircase with Glass Balustrade

Vision Glass Balustrade

Oak square handrail with vision glass panels

Oak SQ-HR Handrail and Oak SQ-BR Baserail with Square newel posts and Vision Glass Balustrade panels with no Brackets.

Order Glass Balustrade Panels Online

Glass Balustrade Panels

X-Vision oak staircase with Glass Z-Vision contemporary staircase Townsend winder Staircase

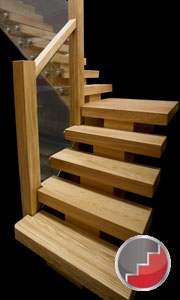

X-Vision Oak Staircase

The Staircase with the X Factor

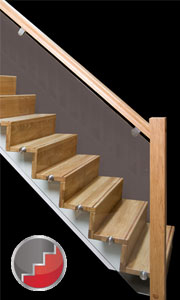

Z-Vision Oak Staircase
