Civic Spiral staircases

Civic Spiral Staircases.

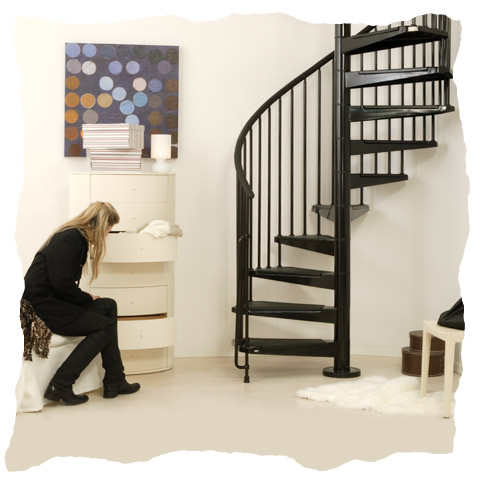

Below you can see a Civic Spiral Staircase in Black.

The Civic Spiral staircase is available in 1200mm 1400mm and 1600mm diameters as well as being available in a selection of colours. Phone 01952 608853 With the Diameter and Floor to Floor Height for a Quotation.

Install Data Sheet |

Civic spiral staircase kit

Showroom - Civic Spiral staircase Section on Display
Stairplan Ltd , Hortonwood 1 , Telford , TF1 7GN, 01952 608853

Civic Spiral Staircase - Above in black

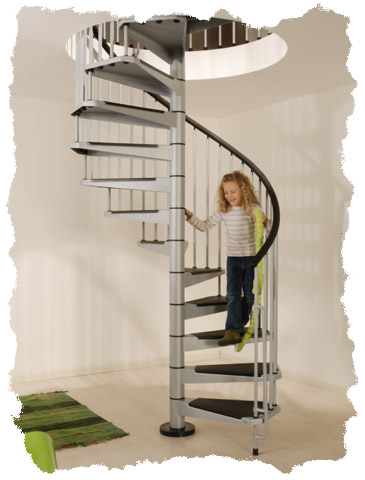

Grey Civic spiral staircases

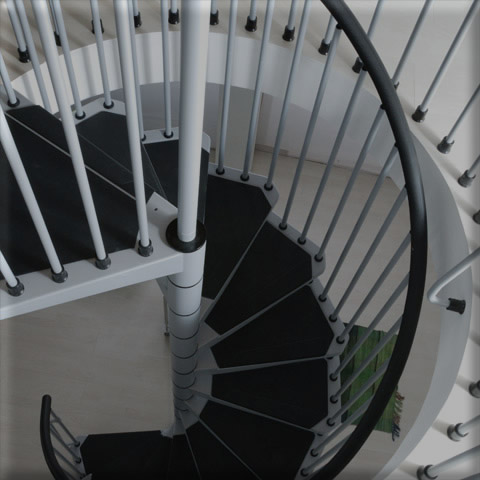

The Civic spiral staircase above is shown in grey with the Black Rail and non slip treads..

The Civic Spiral Staircase

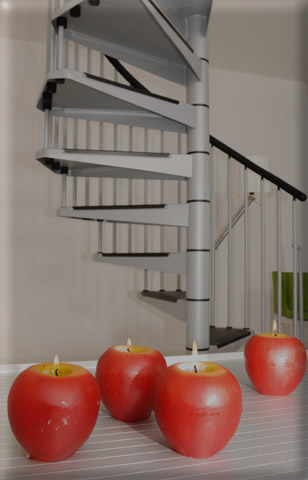

Grey civic spiral Stair kit from Arke

The Civic spiral staircase kits offer you a quality product in the market of standard low cost staircase kits.

The Civic spiral staircase from the Arke range uses simple spacers in between each tread to give you a adjustable height.


Typical delivery on these is 2 to 3 weeks - These are special order items shipped direct from Italy we offer a no returns policy on these.

Avaiable in 1200, 1400 and 1600mm diameters.

The Standard Kit comes with 12 treads and a universal platform giving you a total of 13 risers.


Spiral staircases Civic

The Civic spiral staircase offers Value from Italian manufacturers Arke.

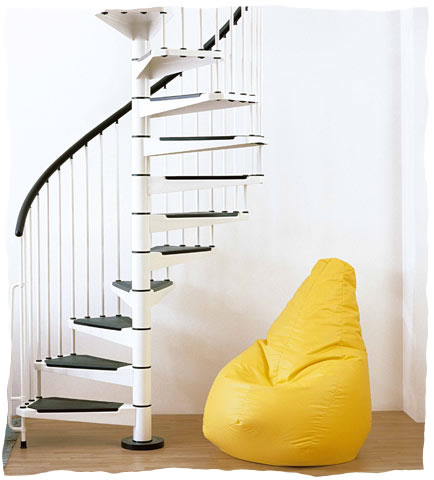

Civic spiral staircase in white

The Civic Spiral Staircase Kit in White above

Working out where the spiral starts and finishes

Look at the following Layout images

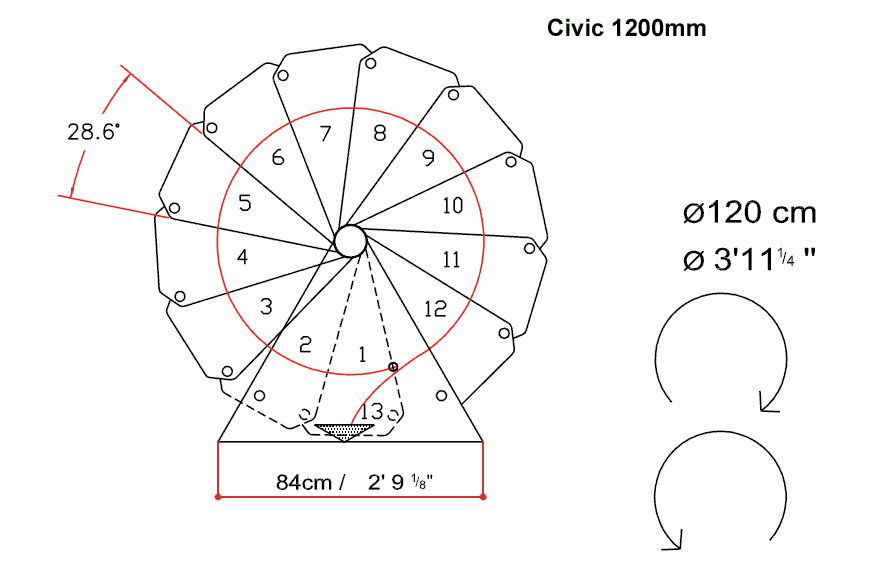

Civic 1200mm Spiral Staircase Plan

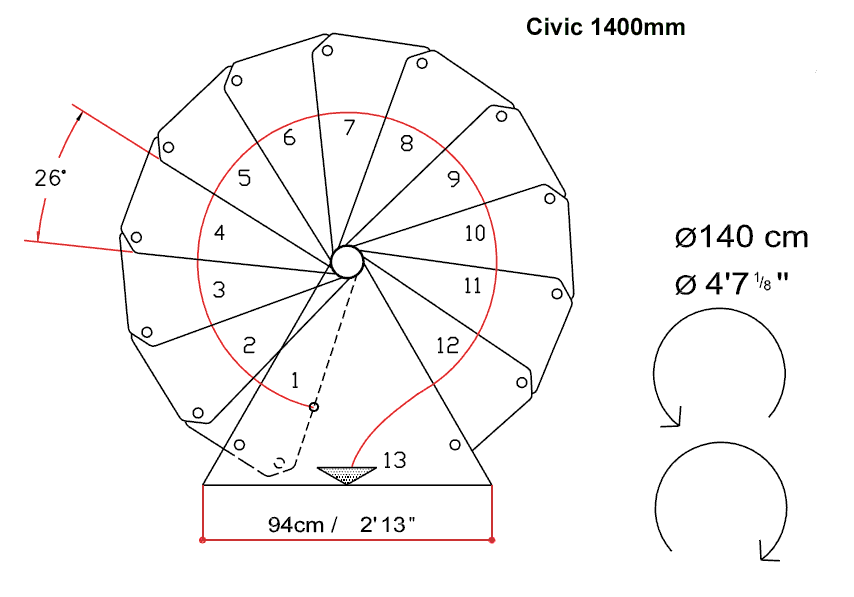

Civic 1400mm Spiral Staircase Plan

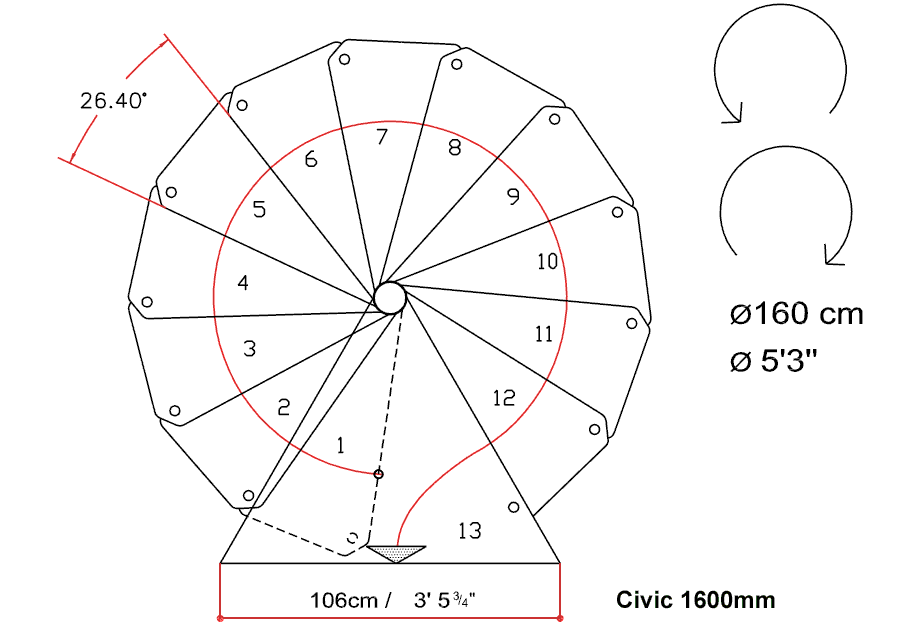

Civic 1600mm Spiral Staircase Plan

When it comes to working out the number of Risers required the Italian Spiral staircase kits work best with a individual rise height between 210mm and 230mm, UK Building Regulations require a Rise height no higher than 220mm But in many cases to get one of these to work you will have to go over this rise height, Remember these spiral staircases are designed for the european Market as a whole and not just the UK market. If your building control officer is offering no lenience then I suggest forgetting a spiral Staircase and go for a Double Winder Staircase. Install Data Sheet

Layout Help

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

Order the Civik Spiral Staircase Online
