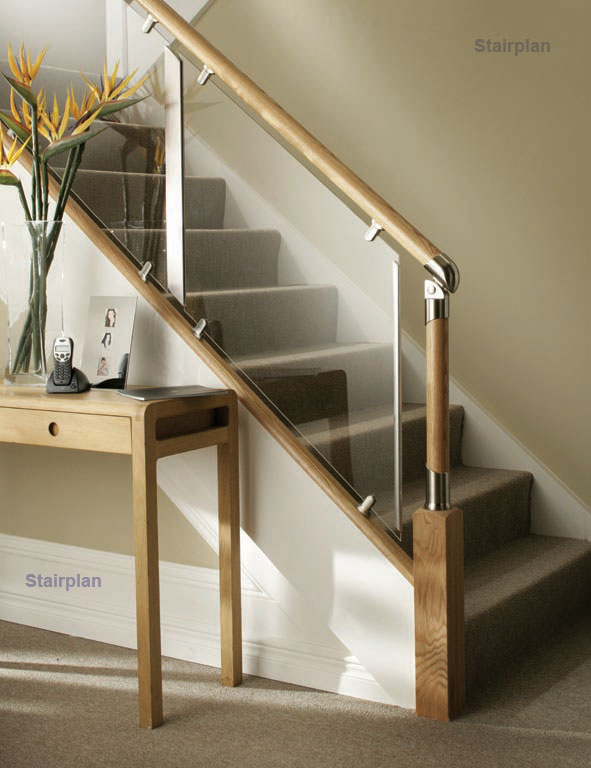

Fusion is a revolutionary new stair balustrading system produced from a combination of timber, metal and ABS plastic components.

Why revolutionary? Fusion take a DIY'er around 50% less time to install and finish than traditional timber balustrading.
The method of installation is extremely straight forward, for example, a typical straight flight in timber balustrading requires approximately 125 saw cuts, Fusion requires just seven Plus due to the nature of installation, the cuts are hidden by the fixing connectors so they dont even need to be 100% accurate.

Timber elements are completely pre-finished in clear varnish, and the metal and ABS components are ready to fit.

Fusion is suitable for both new build or refurbishment projects and is approved to UK Building Regulations for Domestic use.

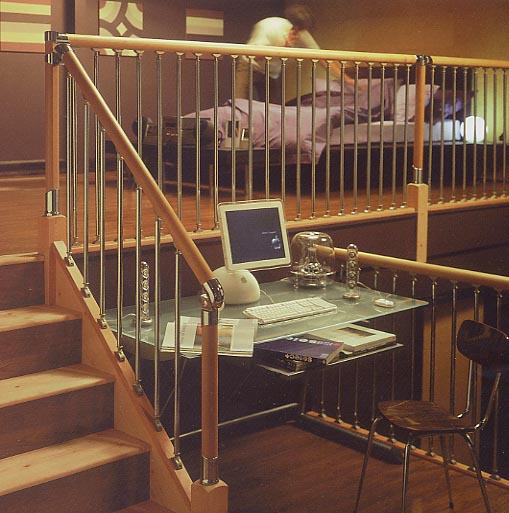

The styling of Fusion is contemporary with a simple, minimalist look.
The traditional turned newel is replaced by a shorter length of the handrail material, the rails and newels are connected using a number of alloy handrail connecting brackets, which allow almost every configuration to be created.

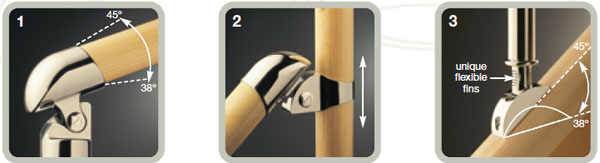

The balusters are tubular in Chrome, Brushed Nickle or Gold effect, the metal balusters are pre-cut to length ideal for you to set your handrail to. The Balusters are then fixed using ABS plastic baluster fixing brackets that cleverly flex to adapt to a range of different pitch angles (40 to 45 degrees)

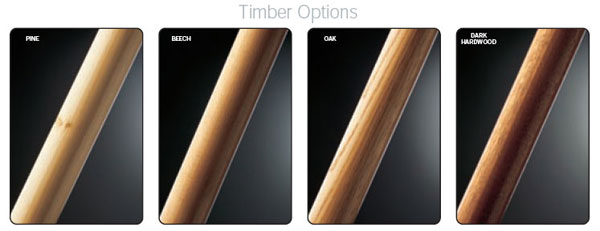

Fusion is available in a choice of timbers and finishes.
The 54mm round handrails and newels, and the ungrooved baserails are available in Pine, Beech, Oak and Sapele, the staircase and landing balusters come with their relevant fixing brackets in chrome or Brushed nickel Finishes.
The connecting handrail brackets come in matching chrome or Brushed nickel Finishes.

The Fusion range is available now.

Fusion help diagrams Page 1 | Page 2 | Page 3

PRICE LIST

FUSION BRACKETS

CHROME
MMBCS - Fusion Chrome Bottom Connector .......................... £18.59 + VAT
MMTCS - Fusion Chrome Top Connector ................................ £18.20 + VAT
MMICS - Fusion Chrome Intermediate Connector .................... £18.39 + VAT
MMLCS - Fusion Chrome Landing Connector .......................... £9.71+ VAT
MMHTRS - Fusion Chrome Horlzontal Turn, Right hand ............ £9.71+ VAT
MMHTLS - Fusion Chrome Horizontal Turn, Left Hand .............. £9.71+ VAT
MMWCS - Fusion Chrome Wall Connector ............................. £10.17+ VAT
MMNCS - Fusion Chrome Newel base Connector .................... £10.62 + VAT
MMALS - Fusion Chrome Adjustable Landing Connector .......... £15.73 + VAT
MMHLS - Fusion Chrome Half Landing Cornector .................... £10.28+ VAT
MMECS - Fusion Chrome End Cap......................................... £9.85 + VAT

NEW BRUSHED NICKEL
MMALB - Brushed Nickel Adjustable Landing Connector............. £17.30 + VAT
MMBCB - Brushed Nickel Bottom Connector............................. £20.45 + VAT
MMECB - Brushed Nickel End Cap.......................................... £10.84 + VAT
MMHLB - Brushed Nickel Half Landing Connector...................... £11.31 + VAT
MMHTLB - Brushed Nickel Horizontal Turn Left.......................... £10.67 +VAT
MMHTRB - Brushed Nickel Horizontal Turn Right....................... £10.67 + VAT
MMICB - Brushed Nickel Intermediate connector........................ £20.23 + VAT
MMLCB - Brushed Nickel Landing Connector............................. £10.67+ VAT
MMNCB - Brushed Nickel Newel Base Connector...................... £11.69 + VAT
MMTCB - Brushed Nickel Top Connector................................... £20.02 +VAT
MMWCB - Brushed Nickel Wall Connector................................ £11.19 + VAT

BALUSTERS AND BALUSTER BRACKETS

SILVER
MMSBSUK - Fusion Silver Staircase Baluster/brackets ............... £ 4.44 + VAT
MMLBSUK - Fusion Silver Landing Baluster/brackets .................. £ 4.64 + VAT
MMSBS10UK - Fusion Silver Staircase Baluster 10 Multi Pack .... £35.52 + VAT
MMLBS10UK - Fusion Silver Landing Baluster 10 Multi Pack ....... £37.16 + VAT


NEW BRUSHED NICKEL
MMLBBUK - Brushed Nickel Landing Balluster/Brackets............... £4.88 + VAT
MMSBBUK - Brushed Nickel Rake Balluster/Brackets.................. £5.11 + VAT
MMLBB10UK - Brushed Nickel 10 x Landing Balluster.................. £40.88 + VAT
MMSBB10UK - Brushed Nickel 10 x Rake Balluster..................... £39.07+ VAT

HANDRAILS

PINE
RHR750PF - Round Handrail 750mm Pine Prefinshed .................. £13.75 + VAT
RHR2400PF - Round Handrail 2400mm pine Prefinished............... £30.56 + VAT
RHR3600PF - Round Handrail 3600mm Pine Prefinished .............. £45.84 + VAT
RHR4200PF - Round Handrail 4200mm Pine Prefinished .............. £53.48 + VAT

BEECH
RHR750BF - Round Handrail 750mm Beech Prefinshed ................ £20.97 + VAT
RHR2400BF - Round Handrail 2400mm Beech Prefinished ............ £52.91+ VAT
RHR3600BF - Round Handrail 3600mm Beech Prefinished ............ £80.42 + VAT
RHR4200BF - Round Handrail 4200mm Beech Prefinished ........... £93.71 + VAT

OAK
RHR750AF - Round Handrail 750mm Oak Prefinshed ....................£ 40.11 + VAT
RHR2400AF - Round Handrail 2400mm Oak Prefinished.................£87.10+ VAT
RHR3600AF - Round Handrail 3600mm Oak Prefinished ................£139.04+ VAT
RHR4200AF - Round Handrail 4200mm Oak Prefinished ................£189.51 + VAT

DARK HARDWOOD
RHR750QF - Round Handrail 750mm Dark Hardwood Prefinshed ............ £21.77 + VAT
RHR2400QF - Round Handrail 2400mm Dark Hardwood Prefinished ........ £52.00 + VAT
RHR3600QF - Round Handrail 3600mm Dark Hardwood Prefinished ........ £78.08 + VAT
RHR4200QF - Round Handrail 4200mm Dark Hardwood Prefinished ....... £91.02 + VAT

BASERAILS (NEW DESIGN)

PINE
SBR2400PF - Ungrooved Baserail 2400mm Pine Prefinished ................ £20.39 + VAT
SBR3600PF - Ungrooved Baserail 3600mm Pine Prefinished ................ £30.59 + VAT
SBR4200PF - Ungrooved Basereil 4200mm Pine Prefinished ................ £34.50 + VAT

BEECH
SBR2400BF - Ungrooved Baserail 2400mm Beech Prefinished .............. £24.10 + VAT
SBR3600BF - Ungrooved Baserail 3600mm Beech Prefinished .............. £36.14 + VAT
SBR4200BF Ungrooved Baserail 4200mm Beech Prefinished ................ £44.45 + VAT

OAK
SBR2400AF - Ungrooved Baserail 2400mm Oak Prefinished ............... £60.25 + VAT
SBR3600AF - Ungrooved Baserail 3600mm Oak Prefinished .............. £92.02 + VAT
SBR4200AF - Ungrooved Basereil 4200mm Oak Prefinished .............. £107.35 + VAT

DARK HARDWOOD
SBR2400QF - Ungrooved Baserail 2400mm Dark Hardwood Prefinished . £32.01 + VAT
SBR3600QF - Ungrooved Baserail 3600mm Dark Hardwood Prefinished . £48.02 + VAT
SBR4200QF - Ungrooved Basereil 4200mm Dark Hardwood Prefinished . £57.99 + VAT

FUSION CUT STRING PRODUCTS

MMINCS - Intermediate Through Newel Connector Silver.........................£18.59 + VAT
MMINCB - Intermediate Through Newel Connector Brushed Nickel..........£20.45 + VAT


MMSBCS - Suspended Baserail Connector Silver..................................£18.59 + VAT
MMSBCB - Suspended Baserail Connector Brushed Nickel....................£20.45 + VAT


NB320BFS - Beech Mid Newel Base with Silver Edge............................£16.30 + VAT
NB320BFB - Beech Mid Newel Base with Brushed Nickel Edge.............£17.93 + VAT


NB320PFS - Pine Mid Newel Base with Silver Edge .............................£13.46 + VAT
NB320PFB - Pine Mid Newel Base with Brushed Nickel Edge................£14.80 + VAT

To order simply phone, fax or Email your list of components to us.

How do I work out what bits I need?

How Easy are Fusion stairparts to install ?

Phone us on 01952 216000 or Fax you list to us on 01952 216021.

HOW DO I ORDER

You can Phone , Fax or Email the list of components you require, payment is required in full with the order.

Once you have placed an order you list of components goes through for picking and any parts that are not in stock are then ordered

Once your parts are ready for collection or delivery we will contact you.

Delivery charge varies depending on your location and
the value of the order
(Typicaly between £10.00 and £50.00 + VAT)

Phone 01952 216000
Fax 01952 216021
Email

Address:-
Stairplan Ltd
Unit C4
Stafford Park 4
Telford
Shropshire
TF3 3BA

Trade enquiries are welcome.
