Gamia

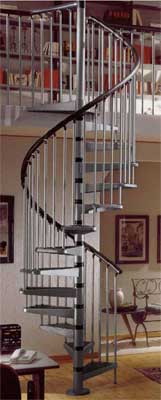

Metal Spiral Staircases
 |
The
design of Gamia Metal was made holding in consideration the installation
problems; the results is a spiral stair of different diameters, with railings always according to code and with rise adjustement’s system which assures a climb of every height in any project. Thanks to the above system and to pratical instructions for the assembly, the installation is a snap. The distinctive feature of Gamia Metal is surely the design of railings. Vertical spindles connected with the flexuous handrail assure an absolute structural rigidity. Diameters = Ø 120 cm - 140 cm - 160 cm. |
|||
| Steps
- Manufactured from stamped plate, with rubber matting; step angle
30°, round or triangular landing angle 60°, square landing angle 90° for round or square opening. Riser heights - standard min. 210 mm. (8 1/4”) - max 230 mm. (9”) (for risers 200 - 210 mm. (7 7/8” - 8 1/4”); 230 ÷ 240 mm. (9” - 9 1/2”); it is possible to cut the balusters during the assembly. Note UK Building Regs has a Maximum Rise Height of 220mm. Please Note the 1200mm diameter Option will not comply with UK Building Regulations Railing - with metal steel tubing balusters ø 22 mm. (7/8”)(clear space among the balusters< 100 mm., 4”); flexible plastic handrail (handrail height = 1000 mm, 39 3/8”) Finishes and colours - metal: durable powder coat (steps - grey ; balusters - grey); plastic components, rubber matting and screws: black |
||||
| Trade Price List | ||||
| Product Code | Description | Price in GBP £ excl VAT | ||
| K1/D1200 | GAMIA METAL 1200mm PRIMARY PACK (11 TREADS) SILVER GREY |
£540.00
+ VAT
|
||
| K1/D1212 | GAMIA METAL 1200mm PRIMARY PACK (12 TREADS) SILVER GREY |
£595.00
+ VAT
|
||
|
Home |
K1/D1400 | GAMIA METAL 1400mm PRIMARY PACK (11 TREADS) SILVER GREY |
£585.00
+ VAT
|
|
| K1/D1412 | GAMIA METAL 1400mm PRIMARY PACK (12 TREADS) SILVER GREY |
£645.00
+ VAT
|
||
| K1/D1600 | GAMIA METAL 1600mm PRIMARY PACK (11 TREADS) SILVER GREY |
£670.00
+ VAT
|
||
| LANDING PACKS | ||||
|
K9/D22 |
GAMIA METAL 1200mm ROUND LANDING PACK SILVER GREY |
£62.50
+ VAT
|
||
| K9D/26 | GAMIA METAL 1200mm FLAT LANDING PACK SILVER GREY |
£62.50
+ VAT
|
||
| K9/D42 | GAMIA METAL 1400mm ROUND LANDING PACK SILVER GREY |
£85.00
+ VAT
|
||
| K9/D46 | GAMIA METAL 1400mm FLAT LANDING PACK SILVER GREY |
£85.00
+ VAT
|
||
| K9/D62 | GAMIA METAL 1600mm ROUND LANDING PACK SILVER GREY |
£100.00
+ VAT
|
||
| K9/D66 | GAMIA METAL 1600mm FLAT LANDING PACK SILVER GREY |
£100.00
+ VAT
|
||
| ADDITIONAL TREAD PACKS | ||||
| K9/D92 | GAMIA METAL 1200mm TREAD PACK SILVER GREY |
£55.00
+ VAT
|
||
| K9/D94 | GAMIA METAL 1400mm TREAD PACK SILVER GREY |
£60.00
+ VAT
|
||
| Note
- The 2 main components you need for a Spiral Staircase are a Primary Pack and a Landing Pack. |
K9/D96 | GAMIA METAL 1600mm TREAD PACK SILVER GREY |
£70.00
+ VAT
|
|
| GAMIA ACCESSORIES | ||||
| K9/310 | GAMIA SAFETY RISER KIT (11No) |
£130.00
+ VAT
|
||
| K9/D320 | GAMIA BALUSTER TO FLOOR CONNECTOR SILVER GREY |
£25.50
+ VAT
|
||
| K9/330 | GAMIA HANDRAIL 2No FLEXIBLE HT'S & 5No END CAPS |
£25.00
+ VAT
|
||
| K9/D300 | PACK OF 8No LANDING BALUSTERS + 1No HT & 1No END CAP |
£75.00
+ VAT
|
||
| K9/340 | GAMIA CENTRE POLE EXTENSION (MAX RISE 3200mm) |
£46.00
+ VAT
|
||
| 70/50038001 | GAMIA BALUSTER TO BALUSTER CONNECTOR SILVER GREY |
£15.00
+ VAT
|
||
| 70/50058001 | GAMIA BALUSTER TO WALL CONNECTOR SILVER GREY |
£15.00
+ VAT
|
||
| SS3MS | GAMIA HANDRAIL 3m STRAIGHT WITH TIMBER CORE |
£40.97
+ VAT
|
||
| SS6MC | GAMIA HANDRAIL 6m FLEXIBLE |
£51.23
+ VAT
|
||
|
To
Order you can Phone us with your list on 01952 216000, Fax 01952
216021 or Email
|
||||
