Gamia Metal Spiral Staircases

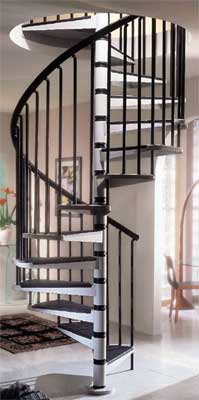

Gamia Metal Spiral staircase The design of Gamia Metal was made holding in consideration the installation problems;
the results is a spiral stair of different diameters, with railings always according to code
and with rise adjustement’s system which assures a climb of every height in any project.
Thanks to the above system and to pratical instructions for the assembly, the installation is a snap.
The distinctive feature of Gamia Metal is surely the design of railings. Vertical spindles
connected with the flexuous handrail assure an absolute structural rigidity.
Diameters = Ø 120 cm - 140 cm - 160 cm.

Steps - Manufactured from stamped plate, with rubber matting; step angle 30°, round or triangular landing angle 60°,
square landing angle 90° for round or square opening.
Riser heights - standard min. 210 mm. (8 1/4”) - max 230 mm. (9”) (for risers 200 - 210 mm.
(7 7/8” - 8 1/4”); 230 ÷ 240 mm. (9” - 9 1/2”); it is possible to cut the balusters during the assembly.
Note UK Building Regs has a Maximum Rise Height of 220mm.
Please Note the 1200mm diameter Option will not comply with UK Building Regulations

Railing - with metal steel tubing balusters ø 22 mm. (7/8”)(clear space among the balusters< 100 mm., 4”);
flexible plastic handrail (handrail height = 1000 mm, 39 3/8”)
Finishes and colours - metal: durable powder coat (steps - grey ; balusters- grey)
; plastic components, rubber matting and screws: black

Phone 01952 608853 With your Floor to Floor Height and Diameter for a Quotation

Trade Price List
Product Code Description Price in GBP £ excl VAT
K1/1200 GAMIA METAL 1200mm PRIMARY PACK (11 TREADS)
K1/1212 GAMIA METAL 1200mm PRIMARY PACK (12 TREADS)

Home
Spiral Staircases
Gamia Metal Silver Grey
Gamia Wood
Gamia Wood Silver Grey
External Spiral
Mini Plus
Spacesaver Staircases
Contact Details

Klan Spiral Staircase
Civic Spiral Staircase
Civic Zink External Spiral Staircase

Kloe Spiral Staircase


Useful Information

K1/1400 GAMIA METAL 1400mm PRIMARY PACK (11 TREADS)
K1/1412 GAMIA METAL 1400mm PRIMARY PACK (12 TREADS)
K1/1600 GAMIA METAL 1600mm PRIMARY PACK (11 TREADS)
LANDING PACKS ( Universal Landing Packs Now Supplied with the Kit)

K9/22

GAMIA METAL 1200mm ROUND LANDING PACK
K9/26 GAMIA METAL 1200mm FLAT LANDING PACK
K9/42 GAMIA METAL 1400mm ROUND LANDING PACK
K9/46 GAMIA METAL 1400mm FLAT LANDING PACK
K9/62 GAMIA METAL 1600mm ROUND LANDING PACK
K9/66 GAMIA METAL 1600mm FLAT LANDING PACK
ADDITIONAL TREAD PACKS
K9/92 GAMIA METAL 1200mm TREAD PACK
Note -
The 2 main components you
need for a Spiral Staircase
are a Primary Pack and
a Landing Pack.
K9/94 GAMIA METAL 1400mm TREAD PACK
K9/96 GAMIA METAL 1600mm TREAD PACK
GAMIA ACCESSORIES
K9/310 GAMIA SAFETY RISER KIT (11No)
K9/320 GAMIA BALUSTER TO FLOOR CONNECTOR
K9/330 GAMIA HANDRAIL 2No FLEXIBLE HT'S & 5No END CAPS
K9/300 PACK OF 8No LANDING BALUSTERS + 1No HT & 1No END CAP
K9/340 GAMIA CENTRE POLE EXTENSION (MAX RISE 3200mm)
70/50039001 GAMIA BALUSTER TO BALUSTER CONNECTOR
70/50059001 GAMIA BALUSTER TO WALL CONNECTOR
SS3MS GAMIA HANDRAIL 3m STRAIGHT WITH TIMBER CORE
SS6MC GAMIA HANDRAIL 6m FLEXIBLE
To Order you can Phone us with your list on 01952 608853, Fax 01952 228679 or Email
