The
design of Gamia Wood was made holding in consideration the installation
problems;
the results is a spiral stair of different diameters, with railings
always according to code
and with rise adjustements system which assures a climb of every
height in any project.
Thanks to the above system and to pratical instructions for the assembly,
the installation is a snap.
The distinctive feature of Gamia Wood is surely the design of railings.
Vertical spindles
connected with the flexuous handrail assure an absolute structural
rigidity.
Diameters = Ø 120 cm - 140 cm - 160 cm.
The use of wood treads allows this model to blend well in any
room, giving warmth and simple elegance. |
|
Steps
-Manufactured from solid beech wood, thickness 38 mm (11/2);
step angle 30°,
round or triangular landing angle 60°, square landing angle 90°
for round or square opening
Riser heights - standard min. 210 mm. (8 1/4) - max 230 mm.
(9) (for risers 200 - 210 mm.
(7 7/8 - 8 1/4); 230 - 240 mm. (9 - 9 1/2);
it is possible to cut the balusters during the assembly.
Note UK Building Regs has a Maximum Rise Height of 220mm.
Please Note the 1200mm diameter Option will not comply with Building
Regulations
Railing - with metal steel tubing balusters ø 22 mm. (7/8)(clear
space among the balusters < 100 mm., 4);
flexible plastic handrail (handrail height = 1000 mm, 39 3/8)
finishes and colours = wood: polished with water varnish (Natural
12); metal: durable
powder coat (embossed black); plastic components, rubber matting and
screws: black
Phone 01952 608853 With your Floor to Floor Height and Diameter for a Quotation |
|
Trade
Price List |
|
Product
Code |
Description |
Price
in GBP £ excl VAT |
|
K2/D1200 |
GAMIA
WOOD 1200mm PRIMARY PACK (11 TREADS) SILVER GREY |
|
|
K2/D1212 |
GAMIA
WOOD 1200mm PRIMARY PACK (12 TREADS) SILVER GREY |
|
|

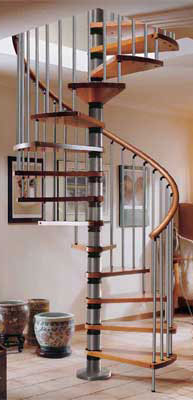

The
Picture above shows the
staircase with the optional
Wooden Handrail Kit.
Home
Spiral Staircases
Gamia Metal Silver
Grey
Gamia Metal
Gamia Wood
External Spiral
Mini
Plus
Spacesaver Staircases
Contact Details
Klan Spiral Staircase
Civic Spiral Staircase
Civic Zink External Spiral Staircase
Kloe Spiral Staircase
Useful
Information
|
K2/D1400 |
GAMIA
WOOD 1400mm PRIMARY PACK (11 TREADS) SILVER GREY |
|
|
K2/D1412 |
GAMIA
WOOD 1400mm PRIMARY PACK (12 TREADS) SILVER GREY |
|
|
K2/D1600 |
GAMIA
WOOD 1600mm PRIMARY PACK (11 TREADS) SILVER GREY |
|
|
LANDING
PACKS |
|
K9/D122
|
GAMIA
WOOD 1200mm ROUND LANDING PACK SILVER GREY |
|
|
K9/D126 |
GAMIA
WOOD 1200mm FLAT LANDING PACK SILVER GREY |
|
|
K9/D142 |
GAMIA
WOOD 1400mm ROUND LANDING PACK SILVER GREY |
|
|
K9/D146 |
GAMIA
WOOD 1400mm FLAT LANDING PACK SILVER GREY |
|
|
K9/D162 |
GAMIA
WOOD 1600mm ROUND LANDING PACK SILVER GREY |
|
|
K9/D166 |
GAMIA
WOOD 1600mm FLAT LANDING PACK SILVER GREY |
|
|
ADDITIONAL
TREAD PACKS |
|
K9/D192 |
GAMIA
WOOD 1200mm TREAD PACK SILVER GREY |
|
|
K9/D194 |
GAMIA
WOOD 1400mm TREAD PACK SILVER GREY |
|
|
K9/D196 |
GAMIA
WOOD 1600mm TREAD PACK SILVER GREY |
|
|
GAMIA
ACCESSORIES |
|
|
K9/310 |
GAMIA
SAFETY RISER KIT (11No) |
|
|
|
K9/D320 |
GAMIA
BALUSTER TO FLOOR CONNECTOR SILVER GREY |
|
|
|
K9/330 |
GAMIA
HANDRAIL 2No FLEXIBLE HT'S & 5No END CAPS |
|
|
Note
-
The 2 main components you
need for a Spiral Staircase
are a Primary Pack and
a Landing Pack. |
K9/D300 |
PACK
OF 8No LANDING BALUSTERS + 1No HT & 1No END CAP S/GREY |
|
|
K9/340 |
GAMIA
CENTRE POLE EXTENSION (MAX RISE 3200mm) |
|
|
70/50038001 |
GAMIA
BALUSTER TO BALUSTER CONNECTOR SILVER GREY |
|
|
70/50058001 |
GAMIA
BALUSTER TO WALL CONNECTOR SILVER GREY |
|
|
SS3MS |
GAMIA
HANDRAIL 3m STRAIGHT WITH TIMBER CORE |
|
|
SS6MC |
GAMIA
HANDRAIL 6m FLEXIBLE |
|
|
WOODEN
HANDRAIL KIT OPTIONS |
|
K9/420 |
WOODEN
HANDRAIL KIT FOR 1200mm SPIRAL |
|
|
|
|
|
K9/440 |
WOODEN
HANDRAIL KIT FOR 1400mm SPIRAL |
|
|
|
K9/460 |
WOODEN
HANDRAIL KIT FOR 1600mm SPIRAL |
|
|
|
K9/412 |
WOODEN
HANDRAIL SECTION FOR ADDITIONAL 1200mm TREAD |
|
|
|
K9/414 |
WOODEN
HANDRAIL SECTION FOR ADDITIONAL 1400mm TREAD |
|
|
|
K9/416 |
WOODEN
HANDRAIL SECTION FOR ADDITIONAL 1600mm TREAD |
|
|
|
K9/400 |
WOODEN
HANDRAIL 1m STRAIGHT SECTION + END CAP |
|
|
|
K9/480 |
WOODEN
HANDRAIL CURVES PACK 1No ADJUSTABLE CURVE
1No 90º CURVE 2No END CAPS & 1No HANDRAIL DRILLING TEMPLATE |
|
|
|
|
|
|
|
|
To
Order you can Phone us with your list on 01952 608853, Fax 01952
228679 or Email
|
|
|
|
|
|
|
|
